ADDING A FULFIILLMENT PRINTER TO SKYTAB POS

ADDING A FULFIILLMENT PRINTER TO SKYTAB POS


ADDING A FULFIILLMENT PRINTER TO SKYTAB POS


Before You Begin

This procedure assumes that you have already added the printer to your Shift4 network. If this is not the case, you will need to contact your IT department or a technician to install the printer on the network before continuing.


Fulfillment printers are only designed to work with SkyTab KDS systems. If you do not have a KDS, this procedure does not apply to your location.

This procedure will take approximately 2 minutes to complete.

You will need the IP address of the printer you want to use as a Fulfillment Printer. Printers which are connected to your SkyTab POS system via USB only will not work.


Navigate to Printers

On your SkyTab POS, navigate to Manager > Settings > Hardware, then tap the Printers tab.


Select Add New Printer

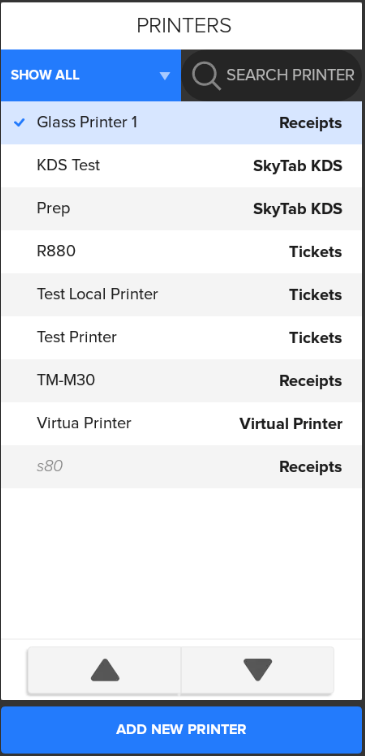

At the bottom of the Printer list, select Add New Printer.

Enter Name, IP Address and Model

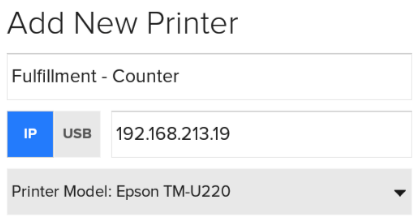

On the Add New Printer dialog, enter the name for the printer.

Enter the IP address for the printer you will use for fulfillment in the provided field.

Select your printer model from the dropdown.

Select Use & Save

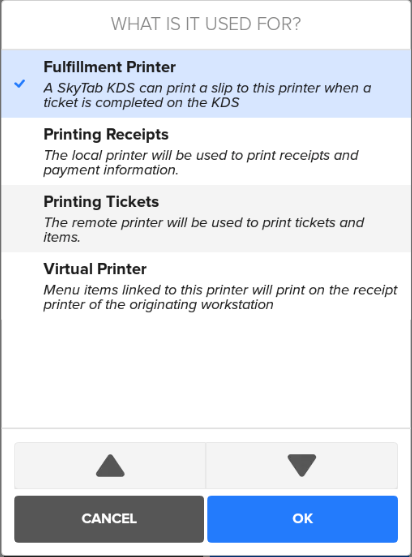

Remaining on the Add New Printer screen, use the dropdown to select Fulfillment Printer from the list. Press OK after selecting the use.

When you are finished, tap Save.
